MTU Display DIS 1 / DIS 2 / DIS 3 / DIS 5 / DIS 7 / DIS 8 / DIS 10 / DIS 12



MTU Display DIS6 / DIS LOS / DIS 13







MTU Display MFD



MTU Display Murphy





MTU Display motherboard









MTU Display CPU board



Display models:

DIS 1.01 5105380175/S0001

DIS 1.02 5105380275/S0001, 5105380275/S0002, 5105380275/S0003, 5105380275/S0004

DIS 2.01 5105380575/S0001, 5105380575/S0002, 5105380575/S0003

DIS 3.01 5105380775/S0001, 5105380575/S0002, 5105380575/S0003

DIS 4.01 5105380975/S0004

DIS 5.01 5105381275/S0001, 5105381275/S0002, 5105381275/S0003, 5105381275/S0004, 5105381275/S0005

DIS 6.01 5105381575/S0001
DIS 6.02 5105383875/S0001, DIS 6.02 5105383875/S0002, DIS 6.02 5105383875/S0003

DIS 7.01 5105383375/S0001, DIS 7.01 5105383375/S0002, DIS 7.01 5105383375/S0003

DIS 7.02 5105383975/S0001, DIS 7.02 5105383975/S0002, DIS 7.02 5105383975/S0003

Dis 8.01 5105383475/S0001, dis 8.01 5105383475/S0002, dis 8.01 5105383475/S0003 (open station, Fly Bridge, closed display)

Dis 8.02 5105384075/S0001, dis 8.02 5105384075/S0002, dis 8.02 5105384075/S0003 (open station, Fly Bridge, closed display)

DIS 9.01 5105384175/S0001

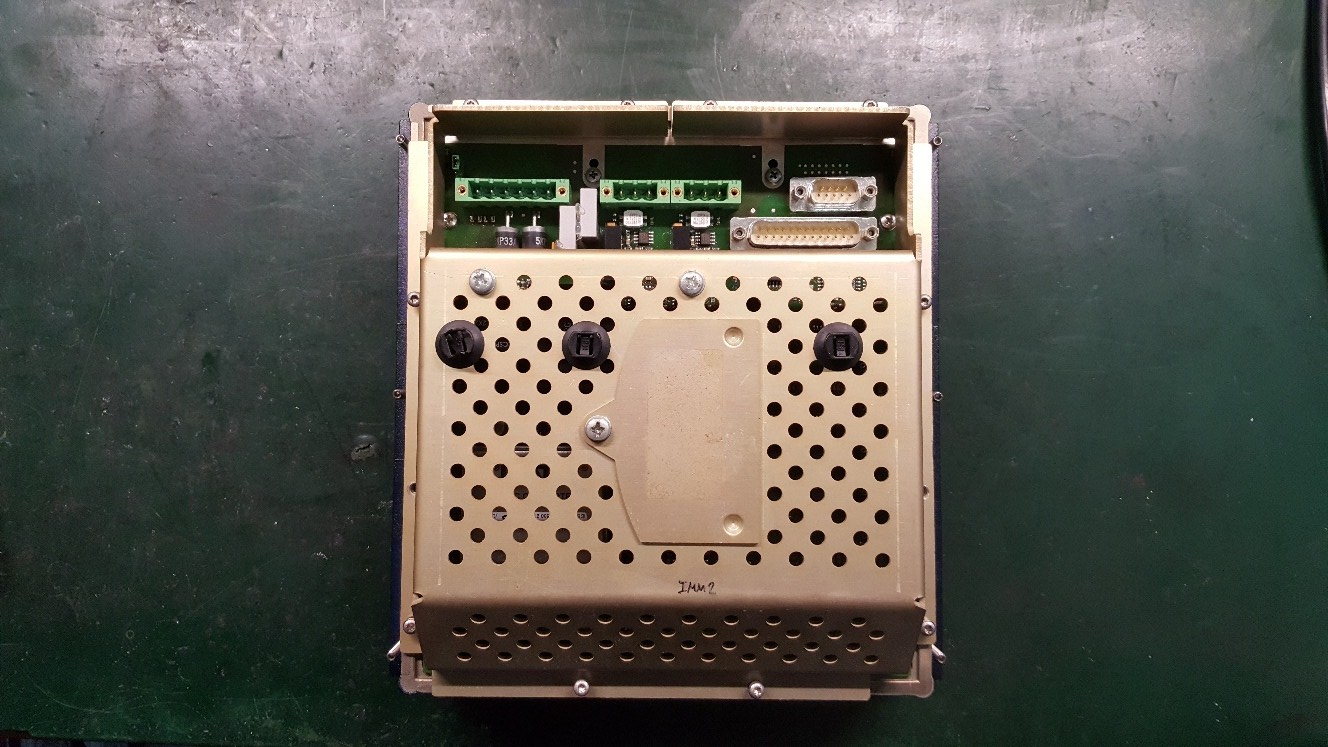

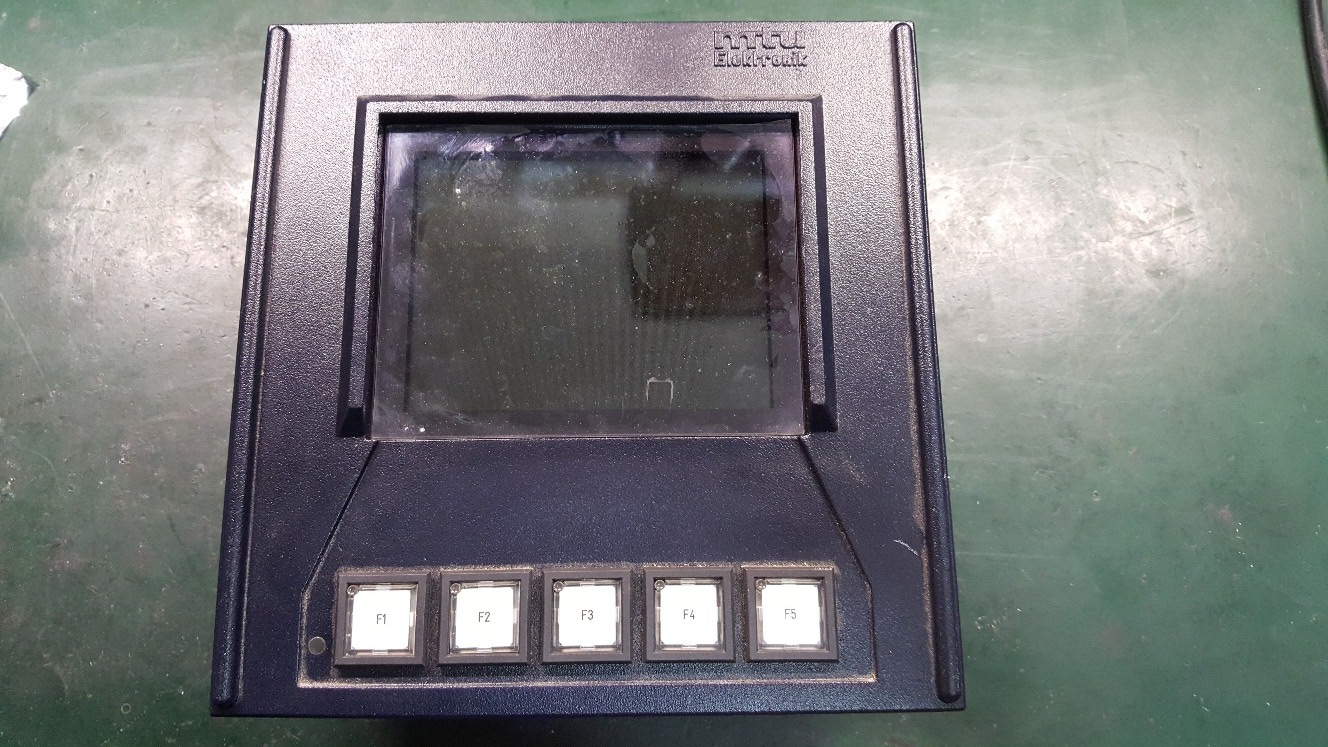

DIS 10.01 5105384575/S0001, 5105384575/S0002, 5105384575/S0003, 5105384575/S0004, 5105384575/S0005, 5105384575/S0006, X00E50200963/S0006

DIS 10.02 5105385875/S0001, 5105385875/S0002, X00E50203600/S0001, X00E50203601/S0001

DIS 11.01 5105384675/S0001, 5105384675/S0002, 5105384675/S0003, 5105384675/S0004, 5105384675/S0005, 5105384675/S0006

DIS 11.02 5105385975/S0001, 5105385975/S0002, X00E50203602/S0001

DIS 12.01 5105384775/S0001, 5105384775/S0002, 5105384775/S0003, 5105384775/S0004, 5105384775/S0005, 5105384775/S0006 (open station, Fly Bridge, closed display)

DIS 12.02 5105386075/S0001, 5105386075/S0002, X00E50203603/S0001 (open station, Fly Bridge, closed display)

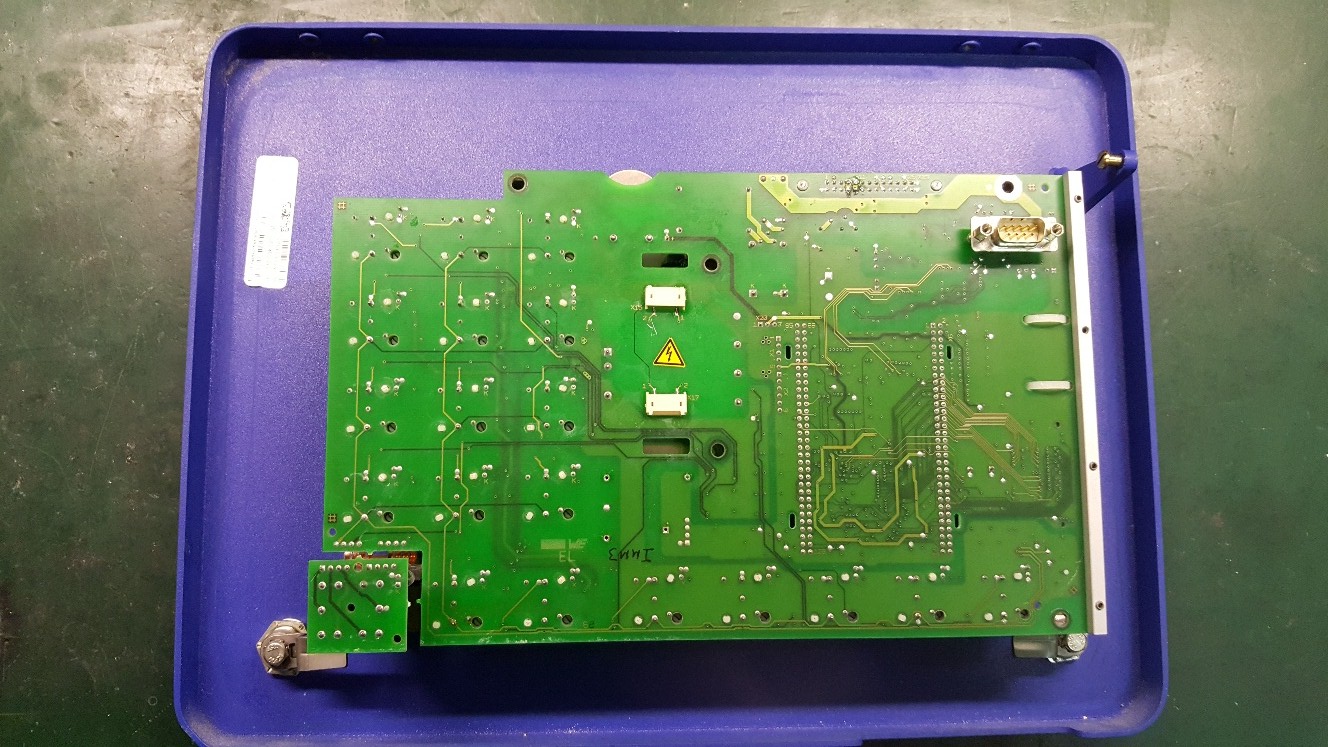

DIS 13.01 5105385275/S0001, 5105385275/S0002, 5105385275/S0003, 5105385275/S0004, 5105385275/S0005, 5105385275/S0006
DIS 13.02 X00010140/S0001, X00010140/S0003, X00010140/S0004, X00010140/S0006,
DIS 13.03 5105386175/S0001, X00E50203604/S0001, X00E50203604/S0002
DIS 13.05 B00E50207299

List of bugs you can have on your display units and we can repair:

Alarms DL or RL of the CAN Bus communication system (Default lost or Redundant lost) in A001, A117, A127
Screen failures with lines or rare LCD behaviors
Display locked with message "MTU. DLL BDM has changed "
Backlight failure, glare-free display with dark vision
Display blocked with message "IDB1 error"
Display does not save node number
Display blocked with "Default project" message
Display with black screen and status LED flashing fast
Process Plate Failures
IDB motherboard Failures
Display is reset intermittently
Display blocked with "initializing Terminal" message
Blocked Display with "Try to connect to host" message



Modelos de displays:

DIS 1.01 5105380175/S0001

DIS 1.02 5105380275/S0001, 5105380275/S0002, 5105380275/S0003, 5105380275/S0004

DIS 2.01 5105380575/S0001, 5105380575/S0002, 5105380575/S0003

DIS 3.01 5105380775/S0001, 5105380575/S0002, 5105380575/S0003

DIS 4.01 5105380975/S0004

DIS 5.01 5105381275/S0001, 5105381275/S0002, 5105381275/S0003, 5105381275/S0004, 5105381275/S0005

DIS 6.01 5105381575/S0001
DIS 6.02 5105383875/S0001, DIS 6.02 5105383875/S0002, DIS 6.02 5105383875/S0003

DIS 7.01 5105383375/S0001, DIS 7.01 5105383375/S0002, DIS 7.01 5105383375/S0003

DIS 7.02 5105383975/S0001, DIS 7.02 5105383975/S0002, DIS 7.02 5105383975/S0003

DIS 8.01 5105383475/S0001, DIS 8.01 5105383475/S0002, DIS 8.01 5105383475/S0003 (open station, fly bridge, closed display)

DIS 8.02 5105384075/S0001, DIS 8.02 5105384075/S0002, DIS 8.02 5105384075/S0003 (open station, fly bridge, closed display)

DIS 9.01 5105384175/S0001

DIS 10.01 5105384575/S0001, 5105384575/S0002, 5105384575/S0003, 5105384575/S0004, 5105384575/S0005, 5105384575/S0006, X00E50200963/S0006

DIS 10.02 5105385875/S0001, 5105385875/S0002, X00E50203600/S0001, X00E50203601/S0001

DIS 11.01 5105384675/S0001, 5105384675/S0002, 5105384675/S0003, 5105384675/S0004, 5105384675/S0005, 5105384675/S0006

DIS 11.02 5105385975/S0001, 5105385975/S0002, X00E50203602/S0001

DIS 12.01 5105384775/S0001, 5105384775/S0002, 5105384775/S0003, 5105384775/S0004, 5105384775/S0005, 5105384775/S0006 (open station, fly bridge, closed display)

DIS 12.02 5105386075/S0001, 5105386075/S0002, X00E50203603/S0001 (open station, fly bridge, closed display)

DIS 13.01 5105385275/S0001, 5105385275/S0002, 5105385275/S0003, 5105385275/S0004, 5105385275/S0005, 5105385275/S0006
DIS 13.02 X00010140/S0001, X00010140/S0003, X00010140/S0004, X00010140/S0006,
DIS 13.03 5105386175/S0001, X00E50203604/S0001, X00E50203604/S0002
DIS 13.05 B00E50207299

Lista de fallos que puede tener en sus unidades de display y podemos reparar:

Alarmas DL o RL del Sistema de comunicación CAN bus (Default lost o Redundant lost) en A001, A117, A127
Fallos en pantalla con líneas o comportamientos raros de LCD
Display bloqueado con mensaje “MTU.DLL BDM has changed”
Fallo de retroiluminación, pantalla sin brillo con visión oscura
Display bloqueado con mensaje “IDB1 error”
Display no guarda número de nodo
Display bloqueado con mensaje “Default project”
Display con pantalla negra y LED de estado parpadeando rápido
Fallos en placa de proceso
Fallos en placa base IDB
Display se resetea de forma intermitente
Display bloqueado con mensaje “Terminal initializing”
Display bloqueado con mensaje “Try to connect to host”
